Control Sony VISCA Camera OSD Menu with PTZ Controller

PTZ Controller  works with Sony VISCA protocol. It’s easy to control Pan/Tilt/ Zoom, Focus, Iris, Presets, and Auto Scan for VISCA cameras.

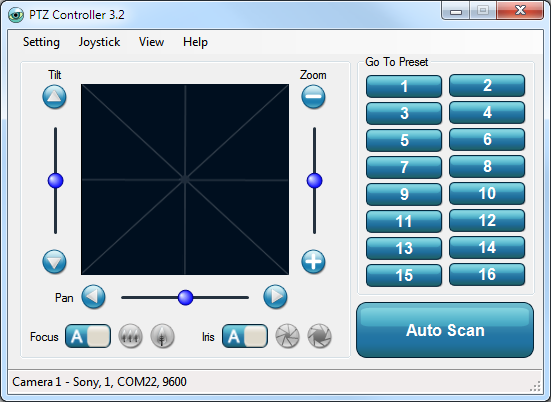

PTZ Controller Mini View

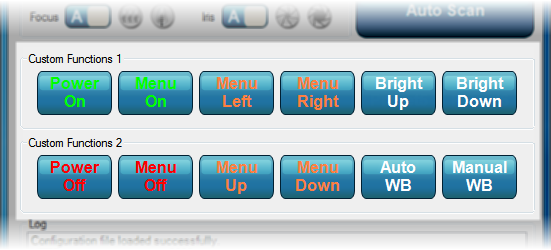

It also supports up to 12 Custom Buttons to allow you set up special command to control your VISCA camera. vdcasinogiriş


Here will show you how to set up Custom Button to control On Screen Display (OSD) Menu.

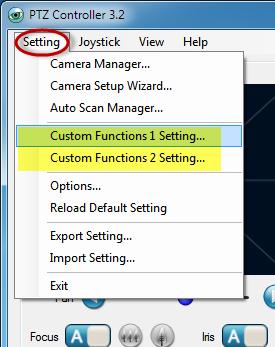

Click Setting –>Custom Functions 1 Setting to show the setting panel.

PTZ Controller - Custom Funtions Setting

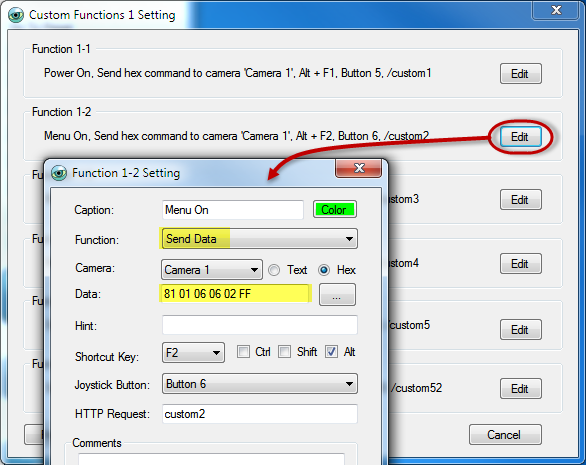

Click Edit button for the Custom Button to show Function Setting panel.

PTZ Controller - Custom Button Funtion Setting

On Function Setting panel, edit Caption, select Send Data, and input the Menu On/Off Command if you know the command. Click OK to confirm the setting.

According to the Sony VISCA protocol, here are the commands for Menu On/Off.

  • Menu On: 8x 01 06 06 02 FF
  • Menu Off: 8x 01 06 06 03 FF

Another way,  right-click the Custom Button, and click Edit pop-up menu to show the setting panel directly. deneme bonusu veren siteler

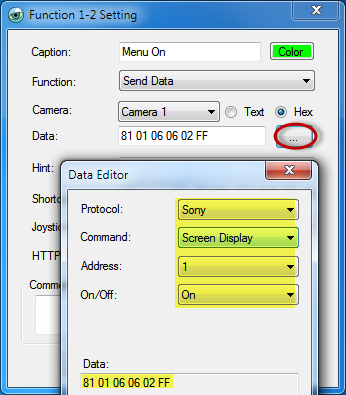

You can also select OSD menu on/off command from PTZ Controller built-in Data Editor. The data/command will be list automatically.

PTZ Controller - Sony VISCA Protocol Menu On

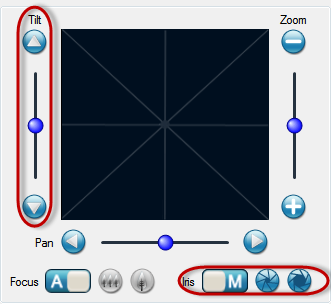

Once you already have the OSD Menu On.  You can control the Menu  Right/Left with Iris Open/Close, and control Menu Up/Down with Tilt Up/Down.

PTZ Controller - Sony VISCA Protocol Menu Right/Left/Up/Down

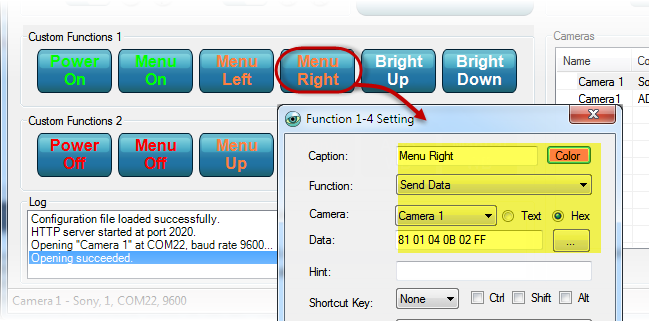

You can also set up Custom Buttons for Menu Right/Left/Up/Down, just like setting up Menu On.

PTZ Controller - Sony VISCA Protocol Menu Right

Here are the commands for Menu Right/Left/Up/Down.

  • Menu Right: 8x 01 04 0B 02 FF
  • Menu Left:  8x 01 04 0B 03 FF
  • Menu Up: 8x 01 06 01 01 01 03 01 FF
  • Menu Down: 8x 01 06 01 01 01 03 02 FF

PTZ Controller Homepage
